Performance Boosting

Objectives

  • Learn how to boost performance using Numba and Cython

Instructor note

  • 30 min teaching/type-along

  • 30 min exercises

Python: An interpreted language

Python is an interpreted language, meaning the Python interpreter reads and executes your code line by line, directly translating it into actions without generating a separate executable file in advance.

👍 Pros: : - dynamic typing (no need to explicitly declare variable types)

  • rapid prototyping (no write, compile, execute cycle)

  • cross-platform (assuming interpreters exist for each platform)

  • automatic memory management (no need to preallocate or deallocate memory as Python uses reference counting and garbage collection to handle memory allocation)

👎 Cons: : - less secure and debuggable (code is exposed and vulnerable to modification or attack by malicious users or hackers)

  • slower execution (python interpreter translates source code line-by-line into intermediate code during runtime, which adds an extra layer of overhead and complexity)

  • resource-intensive (interpreted languages consume more memory and CPU power than compiled languages)

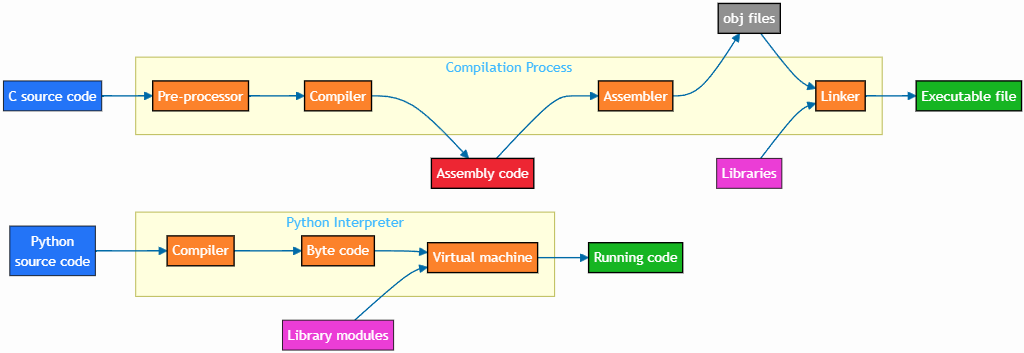

These pros and cons of Python come from the intrinsic interpretion of Python code compared with the compilation of C code.

../../_images/c-python-compilation.png

Pre-compiling Python

Pre-compiling Python refers to the process of converting Python source code (files with .py extension) into bytecode (files with .pyc extension) before execution. Bytecode is an intermediate, platform-independent representation of your Python code that the Python interpreter can execute more quickly than raw source code.

Cython and Numba are among the popular choices and both of them have good support for NumPy arrays.

Accelerator choices

Accelerators

The following are the few well-known accelerators for Python-Numpy applications.

Accelerator

Compiles

Implemented in

Level

Supports

Advantage

Cython

Ahead of time

C

Module

All of Python, Numpy, and C

Generic and can also interface C,C++

Pythran

Ahead of time

C++

Module

Most Python and Numpy features

Escapes GIL always, can optimize vectorized code without loops. Can parallelize using OpenMP.

Numba

Just in time

LLVM

Function

Most Python and Numpy features

Specializes in Numeric codes. Has GPU support, can parallelize

Jax

Just in time

C++

Function or Expression

Most Python and Numpy features

Drop-in alternative for Numpy. Designed for creating ML libraries

Cupy

Pre-compiled / JIT

Cython / C / C++

Function or Expression

Numpy and Scipy

Drop-in alternative for Numpy. Supports CUDA and ROCm GPUs

Refactoring

One complication with optimizing update_word_counts is that it is an impure function. In other words, it has some side-effects since it:

  1. accesses a global variable DELIMITERS, and

  2. mutates an external dictionary counts which is a local variable inside the function calculate_word_counts.

Thus the function update_word_counts on its own can be complicated for an accelerator to compile since the types of the external variables are unknown.

def update_word_counts(line, counts):
    """
    Given a string, parse the string and update a dictionary of word
    counts (mapping words to counts of their frequencies). DELIMITERS are
    removed before the string is parsed. The function is case-insensitive
    and words in the dictionary are in lower-case.
    """
    for purge in DELIMITERS:
        line = line.replace(purge, " ")
    words = line.split()
    for word in words:
        word = word.lower().strip()
        if word in counts:
            counts[word] += 1
        else:
            counts[word] = 1

DELIMITERS = ". , ; : ? $ @ ^ < > # % ` ! * - = ( ) [ ] { } / \" '".split()

def calculate_word_counts(lines):
    """
    Given a list of strings, parse each string and create a dictionary of
    word counts (mapping words to counts of their frequencies). DELIMITERS
    are removed before the string is parsed. The function is
    case-insensitive and words in the dictionary are in lower-case.
    """
    counts = {}
    for line in lines:
        update_word_counts(line, counts)
    return counts

Cython

In this example we shall demonstrate Cython via a package called Transonic . Transonic lets you switch between Cython, Numba, Pythran and to some extent Jax using very similar syntax

To use Transonic we add decorators to functions we need to optimize. There are two decorators

  • @transonic.boost to create ahead-of-time (AOT) compiled modules and it requires type annotations

  • @transonic.jit to create just-in-time (JIT) compiled modules where type is inferred on runtime

The advantage of using transonic is that you can quickly find out which accelerator works best while preserving the Python code for debugging and future development. It also abstracts away the syntax variations that Cython, Pythran etc. have.

The accelerator backend can be chosen in 3 ways:

  1. Using an environment variable, export TRANSONIC_BACKEND=cython

  2. As a parameter to the decorator, @boost(backend="cython")

  3. As a parameter to the Transonic CLI, transonic -b cython /path/to/file.py

We shall use the @boost decorator and the environment variable TRANSONIC_BACKEND for simplicity

Demo

We make a few changes to the code:

  • Pull DELIMITERS inside update_word_counts function

  • Add @boost decorators

  • Add type annotations as required by transonic.

Cython has an ability to create inline functions and this is also supported in Transonic. Therefore it is OK that update_word_counts is impure.

from transonic import boost
from transonic.typing import List, Dict

@boost(inline=True)
def update_word_counts(line: str, counts: Dict[str, int]):
    """
    Given a string, parse the string and update a dictionary of word
    counts (mapping words to counts of their frequencies). DELIMITERS are
    removed before the string is parsed. The function is case-insensitive
    and words in the dictionary are in lower-case.
    """
    DELIMITERS = ". , ; : ? $ @ ^ < > # % ` ! * - = ( ) [ ] { } / \" '".split()

    for purge in DELIMITERS:
        line = line.replace(purge, " ")

    words = line.split()
    for word in words:
        word = word.lower().strip()
        if word in counts:
            counts[word] += 1
        else:
            counts[word] = 1


@boost
def calculate_word_counts(lines: List[str]):
    """
    Given a list of strings, parse each string and create a dictionary of
    word counts (mapping words to counts of their frequencies). DELIMITERS
    are removed before the string is parsed. The function is
    case-insensitive and words in the dictionary are in lower-case.
    """
    counts = {}

    for line in lines:
        update_word_counts(line, counts)

    return counts

Then compile the file wordcount/v1_1.py.

$ export TRANSONIC_BACKEND=cython
$ transonic v1_1.py
...
1 files created or updated needs to be cythonized
$ ls -1 __cython__/
build
v1_1_ee8b793c43119b782190c854a1eb2ba7.cpython-312-x86_64-linux-gnu.so
v1_1.pxd
v1_1.py

This would auto-generate a module containing only the functions to be optimized and also compiles it. While running the application, Transonic takes care of swapping the Python function with the compiled counterpart.

We are ready to benchmark this.

$ time python v1_1.py data/concat.txt processed_data/concat.dat

real    0m4,071s
user    0m4,373s
sys     0m0,288s

Summary

We see that the compiled function made the script slower! This could happen because of a few reasons

  • Python’s dictionary which uses hash-maps, is quite optimized and it is hard to beat it

  • Cython interacts with Python a lot. This can be analyzed by running cd __cython__; cythonize --annotate v1_1.py which generates the following HTML page.

Cython

Cython is a superset of Python that additionally supports calling C functions and declaring C types on variables and class attributes. Under Cython, source code gets translated into optimized C/C++ code and compiled as Python extension modules.

Developers can run the cython command-line utility to produce a .c file from a .py file which needs to be compiled with a C compiler to an .so library which can then be directly imported in a Python program. There is, however, also an easy way to use Cython directly from Jupyter notebooks through the %%cython magic command. Herein, we restrict the discussion to the Jupyter-way. A full overview of Cython capabilities refers to the documentation.

Demo: Cython

Consider a problem to integrate a function:

$$ \int^{b}_{a}(x^2-x)dx $$

Python: Benchmarking (step 0)

Python code is provided below:

import numpy as np

def f(x):
    return x ** 2 - x

def integrate_f(a, b, N):
    s = 0
    dx = (b - a) / N
    for i in range(N):
        s += f(a + i * dx)
    return s * dx

def apply_integrate_f(col_a, col_b, col_N):
    n = len(col_N)
    res = np.empty(n,dtype=np.float64)
    for i in range(n):
        res[i] = integrate_f(col_a[i], col_b[i], col_N[i])
    return res

We generate a dataframe and apply the apply_integrate_f() function on its columns, timing the execution:

import pandas as pd

df = pd.DataFrame({"a": np.random.randn(1000),
                  "b": np.random.randn(1000),
                  "N": np.random.randint(100, 1000, (1000))})

%timeit apply_integrate_f(df['a'], df['b'], df['N'])
# 194 ms ± 1.65 ms per loop (mean ± std. dev. of 7 runs, 1 loop each)

Cython: Benchmarking (step 1)

In order to use Cython, we need to import the Cython extension:

%load_ext cython

As a first cythonization step, we add the cython magic command (%%cython -a) on top of Jupyter code cell. We start by a simply compiling the Python code using Cython without any changes. The code is shown below:

%%cython -a

import numpy as np
import pandas as pd

def f_cython(x):
    return x * (x - 1)

def integrate_f_cython(a, b, N):
    s = 0
    dx = (b - a) / N
    for i in range(N):
        s += f_cython(a + i * dx)
    return s * dx

def apply_integrate_f_cython(col_a, col_b, col_N):
    n = len(col_N)
    res = np.empty(n,dtype=np.float64)
    for i in range(n):
        res[i] = integrate_f_cython(col_a[i], col_b[i], col_N[i])
    return res

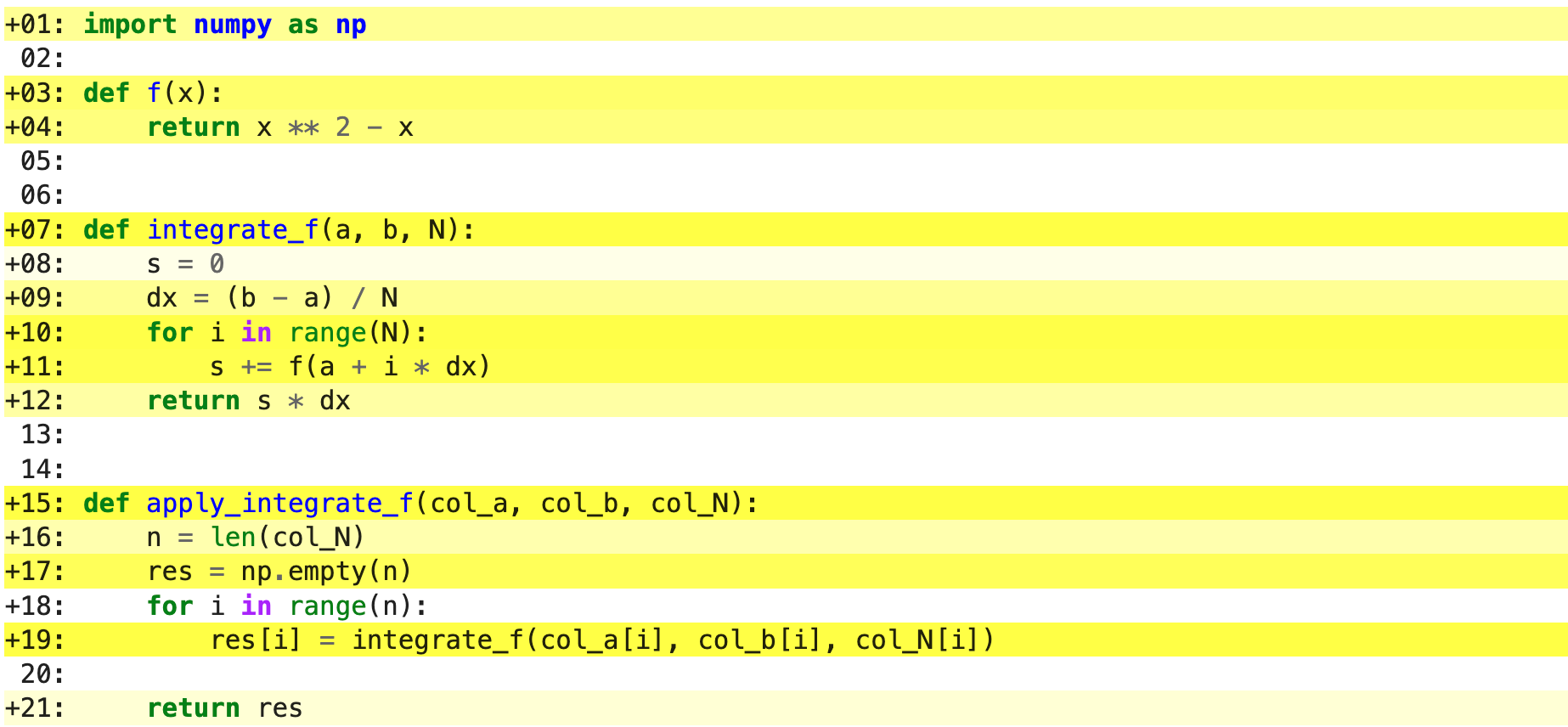

The yellow coloring in the output shows us the amount of pure Python code:

../../_images/cython_annotate.png

Our task is to remove as much yellow as possible by static typing, i.e. explicitly declaring arguments, parameters, variables and functions.

We benchmark the Python code just using Cython, and it gives us about 10%-20% increase in performance.

%timeit apply_integrate_f_cython(df['a'], df['b'], df['N'])
# 141 ms ± 3.07 ms per loop (mean ± std. dev. of 7 runs, 1 loop each)

Cython: Adding data type annotation to input variables (step 2)

Now we can start adding data type annotation to the input variables as highlightbed in the code example below:

%%cython -a

import numpy as np
import pandas as pd

def f_cython_dtype0(double x):
    return x ** 2 - x

def integrate_f_cython_dtype0(double a, double b, long N):
    s = 0
    dx = (b - a) / N
    for i in range(N):
        s += f_cython_dtype0(a + i * dx)
    return s * dx

def apply_integrate_f_cython_dtype0(double[:] col_a, double[:] col_b, long[:] col_N):
    n = len(col_N)
    res = np.empty(n,dtype=np.float64)
    for i in range(n):
        res[i] = integrate_f_cython_dtype0(col_a[i], col_b[i], col_N[i])
    return res

# this will not work
#%timeit apply_integrate_f_cython_dtype0(df['a'], df['b'], df['N'])

# this command works (see the description below)
%timeit apply_integrate_f_cython_dtype0(df['a'].to_numpy(), df['b'].to_numpy(), df['N'].to_numpy())
# 64.1 ms ± 0.50 ms per loop (mean ± std. dev. of 7 runs, 10 loops each)

Warning

You can not pass a Series directly since Cython definition is specific to an array. Instead we should use Series.to_numpy() to get the underlying NumPy array which works nicely with Cython.

Note

Cython uses the normal C syntax for types and provides all standard ones, including pointers. Here is a list of a few examples:

NumPy dtype

Cython type identifier

C type identifier

import numpy as np

cimport numpy as cnp

np.bool_

N/A

N/A

np.int_

cnp.int_t

long

np.intc

N/A

int

np.intp

cnp.intp_t

ssize_t

np.int8

cnp.int8_t

signed char

np.int16

cnp.int16_t

signed short

np.int32

cnp.int32_t

signed int

np.int64

cnp.int64_t

signed long long

np.uint8

cnp.uint8_t

unsigned char

np.uint16

cnp.uint16_t

unsigned short

np.uint32

cnp.uint32_t

unsigned int

np.uint64

cnp.uint64_t

unsigned long

np.float_

cnp.float64_t

double

np.float32

cnp.float32_t

float

np.float64

cnp.float64_t

double

np.complex_

cnp.complex128_t

double complex

np.complex64

cnp.complex64_t

float complex

np.complex128

cnp.complex128_t

double complex

Differeces between import (for Python) and cimport (for Cython) statements

  • import gives access to Python functions or attributes

  • cimport gives access to C functions or attributes

  • it is common to use the following, and Cython will internally handle this ambiguity


   import numpy as np  # access to NumPy Python functions
   cimport numpy as np # access to NumPy C API

Cython: Adding data type annotation to functions (step 3)

Next step, we further add type annotation to functions. There are three ways of declaring functions:

  • def - Python style:

    • Called by Python or Cython code, and both input/output are Python objects.

    • Declaring argument types and local types (thus return values) can allow Cython to generate optimized code which speeds up the execution.

    • Once types are declared, a TypeError will be raised if the function is passed with the wrong types.

  • cdef - C style:

    • Called from Cython and C, but not from Python code.

    • Cython treats functions as pure C functions, which can take any type of arguments, including non-Python types, e.g., pointers.

    • This usually gives the best performance.

    • However, one should really take care of the functions declared by cdef as these functions are actually writing in C.

  • cpdef - C/Python mixed style:

    • cpdef function combines both cdef and def.

    • Cython will generate a cdef function for C types and a def function for Python types.

    • In terms of performance, cpdef functions may be as fast as those using cdef and might be as slow as def declared functions.

%%cython -a

import numpy as np
import pandas as pd

cdef f_cython_dtype1(double x):
    return x ** 2 - x

cpdef integrate_f_cython_dtype1(double a, double b, long N):
    s = 0
    dx = (b - a) / N
    for i in range(N):
        s += f_cython_dtype1(a + i * dx)
    return s * dx

cpdef apply_integrate_f_cython_dtype1(double[:] col_a, double[:] col_b, long[:] col_N):
    n = len(col_N)
    res = np.empty(n,dtype=np.float64)
    for i in range(n):
        res[i] = integrate_f_cython_dtype1(col_a[i], col_b[i], col_N[i])
    return res

%timeit apply_integrate_f_cython_dtype1(df['a'].to_numpy(), df['b'].to_numpy(), df['N'].to_numpy())
# 54.9 ms ± 699 µs per loop (mean ± std. dev. of 7 runs, 10 loops each)

Cython: Adding data type annotation to local variables (step 4)

Last step, we can add type annotation to local variables within functions and the output.

%%cython -a

import numpy as np
import pandas as pd

cdef double f_cython_dtype2(double x):
    return x ** 2 - x

cpdef double integrate_f_cython_dtype2(double a, double b, long N):
    cdef double s, dx
    cdef long i

    s = 0
    dx = (b - a) / N
    for i in range(N):
        s += f_cython_dtype2(a + i * dx)
    return s * dx

cpdef double[:] apply_integrate_f_cython_dtype2(double[:] col_a, double[:] col_b, long[:] col_N):
    cdef long n,i
    cdef double[:] res

    n = len(col_N)
    res = np.empty(n,dtype=np.float64)
    for i in range(n):
        res[i] = integrate_f_cython_dtype2(col_a[i], col_b[i], col_N[i])
    return res

%timeit apply_integrate_f_cython_dtype2(df['a'].to_numpy(), df['b'].to_numpy(), df['N'].to_numpy())
# 13.8 ms ± 97.8 µs per loop (mean ± std. dev. of 7 runs, 100 loops each)

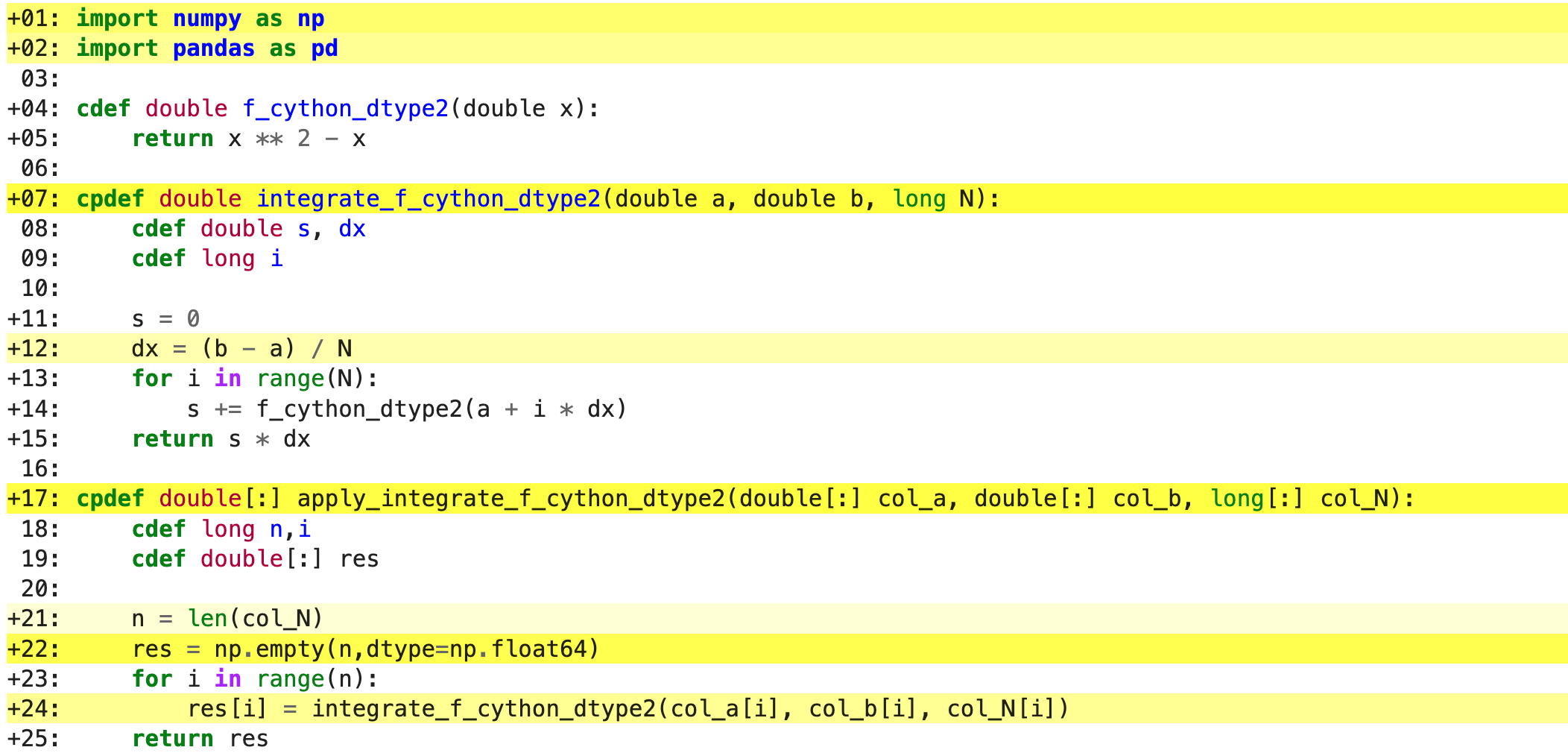

Now it is ~ 10 times faster than the original Python implementation, and all we have done is to add type declarations on the Python code! We indeed see much less Python interaction in the code from step 1 to step 4.

../../_images/cython_annotate_2.png

Numba

An alternative to statically compiling Cython code is to use a dynamic just-in-time (JIT) compiler with Numba. Numba allows to write a pure Python function which can be JIT compiled to native machine instructions, similar in performance to C/C++ and Fortran, by simply adding the decorator @jit in the function.

However, the @jit compilation will add overhead to the runtime of the function, i.e., the first time a function is run using Numba engine will be slow as Numba will have the function compiled. Once the function is JIT compiled and cached, subsequent calls will be fast. So the performance benefits may not be realized especially when using small datasets.

Numba supports compilation of Python to run on either CPU or GPU hardware, and is designed to integrate with Python scientific software stack. The optimized machine code is generated by the LLVM compiler infrastructure.

Demo: Numba

We consider the integration problem again using Numba.

\[\int^{b}_{a}(x^2-x)dx\]

Numba: Adding @jit decorator for functions (step 1)

Here is the updated code with the inclusion of the @jit decorator for the three functions.

import numpy as np
import numba

@numba.jit
def f_numba(x):
    return x ** 2 - x

@numba.jit
def integrate_f_numba(a, b, N):
    s = 0
    dx = (b - a) / N
    for i in range(N):
        s += f_numba(a + i * dx)
    return s * dx

@numba.jit
def apply_integrate_f_numba(col_a, col_b, col_N):
    n = len(col_N)
    res = np.empty(n,dtype=np.float64)
    for i in range(n):
        res[i] = integrate_f_numba(col_a[i], col_b[i], col_N[i])
    return res

%timeit apply_integrate_f_numba(df['a'].to_numpy(), df['b'].to_numpy(), df['N'].to_numpy())
# 474 µs ± 17 µs per loop (mean ± std. dev. of 7 runs, 1 loops each)

Numba: Adding date type to @jit decorator (step 2)

We can further add date type, although in this case there is not much performance improvement:

import numpy as np
import numba

@numba.jit(numba.float64(numba.float64))
def f_numba_dtype(x):
    return x ** 2 - x

@numba.jit(numba.float64(numba.float64,numba.float64,numba.int64))
def integrate_f_numba_dtype(a, b, N):
    s = 0
    dx = (b - a) / N
    for i in range(N):
        s += f_numba_dtype(a + i * dx)
    return s * dx

@numba.jit(numba.float64[:](numba.float64[:],numba.float64[:],numba.int64[:]))
def apply_integrate_f_numba_dtype(col_a, col_b, col_N):
    n = len(col_N)
    res = np.empty(n,dtype=np.float64)
    for i in range(n):
        res[i] = integrate_f_numba_dtype(col_a[i], col_b[i], col_N[i])
    return res

%timeit apply_integrate_f_numba_dtype(df['a'].to_numpy(), df['b'].to_numpy(), df['N'].to_numpy())
# 468 µs ± 298 ns per loop (mean ± std. dev. of 7 runs, 1,000 loops each)

Numba vs Cython

Should you use Numba or Cython? Does it matter?

  • Performance is usually very similar and exact results depend on versions of Python, Cython, Numba and NumPy.

  • Numba is generally easier to use (just add @jit).

  • Cython is more stable and mature, Numba developing faster.

  • Numba also works for GPUs (check optional material for GPU Computing).

  • Cython can compile arbitrary Python code and directly call C libraries, Numba has restrictions.

  • Numba requires LLVM toolchain, Cython only C compiler.

Finally:

  • NumPy is really good at what it does.

  • For simple operations or small data, either Numba or Cython is not going to outperform it. But when things get more complex these frameworks can save the day!

Exercises

Profile the word-autocorrelation code

  • Revisit the word-autocorrelation code.

  • Clone the repository using the command below (You should add a ! before each command if you use Jupyter to run the code example).

$ git clone https://github.com/ENCCS/word-count-hpda.git

To run the code, type:

$ cd word-count-hpda
$ python source/wordcount.py data/pg99.txt processed_data/pg99.dat
$ python source/autocorrelation.py data/pg99.txt processed_data/pg99.dat results/acf_pg99.dat

Add @profile to the word_acf() function, and run kernprof from the command line. What lines of this function are the most expensive?

Is the word_acf() function efficient?

Have another look at the word_acf() function from the word-count project.

def word_acf(word, text, timesteps):
    """
    Calculate word-autocorrelation function for given word
    in a text. Each word in the text corresponds to one "timestep".
    """
    acf = np.zeros((timesteps,))
    mask = [w==word for w in text]
    nwords_chosen = np.sum(mask)
    nwords_total = len(text)
    for t in range(timesteps):
        for i in range(1,nwords_total-t):
            acf[t] += mask[i]*mask[i+t]
        acf[t] /= nwords_chosen
    return acf

Do you think there is any room for improvement? How would you go about optimizing this function?

Try to implement one faster version!

Pairwise distance

Consider the following Python function:

import numpy as np

def dis_python(X):
    M = X.shape[0]
    N = X.shape[1]
    D = np.empty((M, M), dtype=np.float64)
    for i in range(M):
        for j in range(M):
            d = 0.0
            for k in range(N):
                tmp = X[i, k] - X[j, k]
                d += tmp * tmp
            D[i, j] = np.sqrt(d)
    return D

Start by profiling it in Jupyter:

X = np.random.random((1000, 3))
%timeit dis_python(X)

Now try to speed it up with NumPy (i.e. vectorise the function), Numba or Cython (depending on what you find most interesting).

Bubble sort

To make a long story short, in the worse case the time taken by the Bubblesort algorithm is roughly $O(n^2)$ where $n$ is the number of items being sorted.

../../_images/Bubble-sort-example-300px.gif

Here is a function that performs bubble-sort:

def bs_python(a_list):
    N = len(a_list)
    for i in range(N):
        for j in range(1, N-i):
            if a_list[j] < a_list[j-1]:
                a_list[j-1], a_list[j] = a_list[j], a_list[j-1]
    return a_list

And this is how you can benchmark it:

import random
l = [random.randint(1,1000) for num in range(1, 1000)]
%timeit bs_python(l)

Now try to speed it up with Numba or Cython (depending on what you find most interesting). Make sure that you’re getting the correct result, and then benchmark it with %timeit.

Static typing

Consider the following example of calculating the square of an array. We have a few different versions using Numba. Benchmark them and compare the results.

import numpy as np
X=np.random.rand(10000)
%timeit np.square(X)

See also

Keypoints

  • To squeeze the last drop of performance out of your Python code, you can convert performance-critical functions to Cython or Numba.

  • Both Cython and Numba pre-compile Python code to make it run faster.
